CCTV Towers

Opalstone is a provider of Mobile Deployment Towers, available in Solar, Mains or Hybrid.

Our robust and reliable mobile solutions support a variety of applications in remote areas, such as Construction, Infrastructure, Nuclear, Renewable Energy, Vacant Property, Agriculture, Vacant Property, Utilities, and Events.

Mobile Towers manufactured in the UK, engineered and built to the highest quality, using the very latest technology – HIKVISION, HANWHA, AXIS, BOSCH, DAHUA and AJAX.

Tower heights available from 1440mm to 6m.

Optional NSI Gold Monitoring, SIA Guard & Police Response.

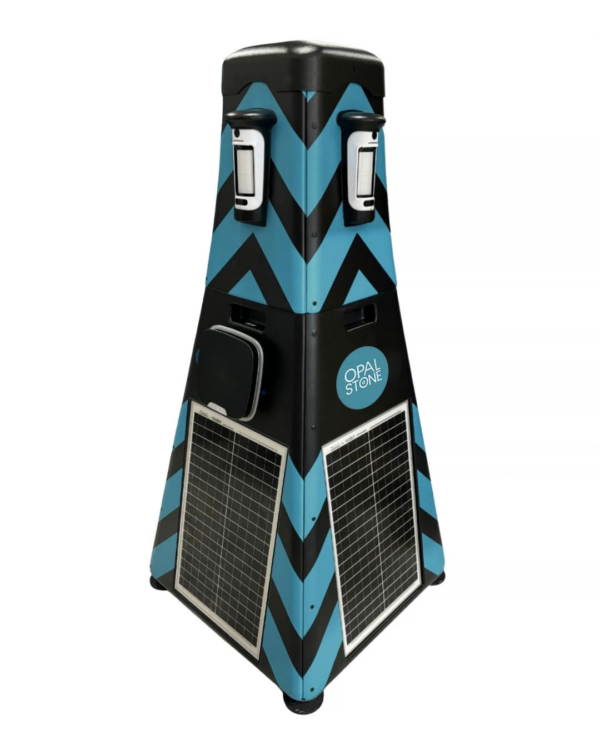

Maxsite POD

All-round protection – Powered by solar and complemented by a battery back-up system, the wireless Maxsite POD is designed for versatility and rapid deployment. Consisting of 4x Motion Cam Detectors, providing 360° intrusion detection & coverage. Secured inside, the Hub manages all connections and can pair with additional detectors, including fire protection and flood sensors, to offer enhanced protection to your project.

Maxsite POD Technical:

  • Compact by design
  • Weatherproof hard-bodied design
  • Manufactured in the UK
  • Built-in Solar Panels
  • Height – approx. 1440mm
  • Base Width – approx. 680mm
  • Total Weight approx. 35kg
  • Battery – (Lithium 33ah Battery) weight approx. 4.9kg
  • Additional power/battery options available
  • Spirafix ground anchor x 1 internally for additional hold & integrity
  • Optional features such as Fire/First Aid and other Custom Call Points



  • Ajax 360° Camera Motion Detectors
  • Wireless Sounder
  • Cloud Storage via internal 3/4G Sim Card Slot
  • 1 x 33ah Lithium Battery
  • 4 x 30w Solar Panels
  • Victron Solar Charge Controller
  • Battery Charging System (12v)

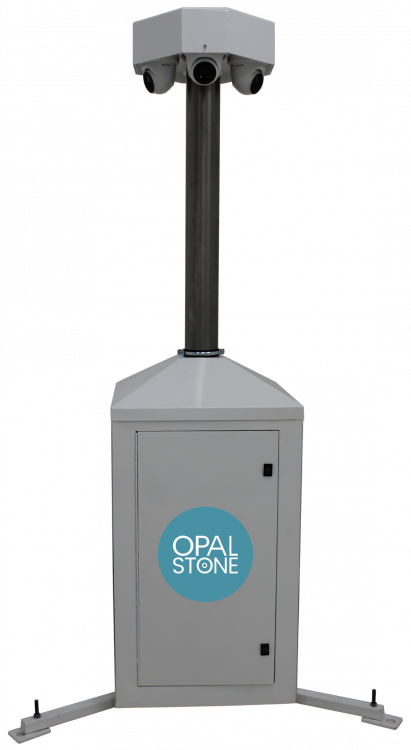

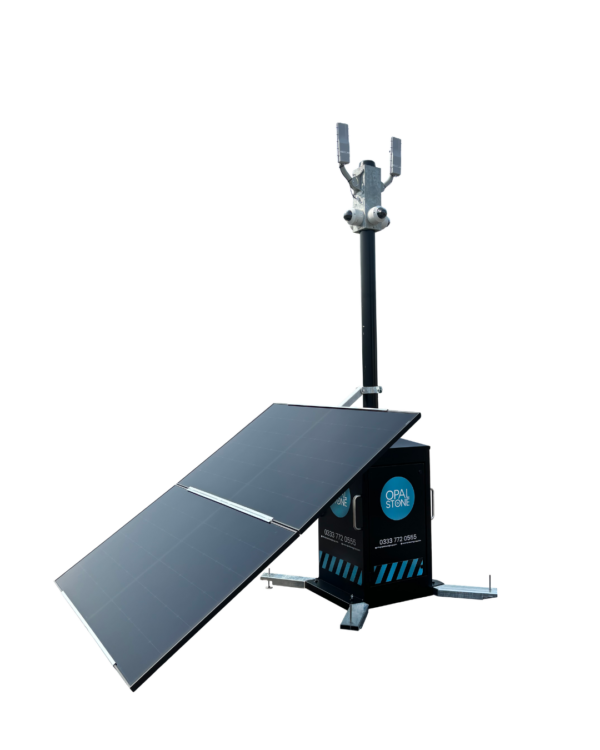

Maxsite Mini Tower

Offers a reliable, robust, and versatile alternative, and lightweight enough to fit in any space (indoors or outdoors)

Optional wireless links for enhanced recording to Network Video recorder (NVR) for Health and Safety activities.

Maxsite Mini Tower 3.75m Technical:

  • Solar, Mains or Hybrid
  • Compact by design – collapsible galvanised mast (reduces for transportation)
  • Available in 3 different mast heights 2m, 3m & 3.75m
  • Fixed brake winch operated mast design
  • Cabinet base with skids design – base now measures approx. 860mm x 600mm
  • Cabinet base approx. 650mm x 650mm
  • Weight 78kg approx. (without batteries)
  • Solar Batteries – (Lithium) weight 2 x 13.5kg (approx. total 26kg)
  • Solar Bracket Frame approx. 35kg, solar panels x 2 approx. 18kg each
  • Includes an onboard 110v charger and battery backup system, and can also be plugged into mains/generator
  • Total weight approx. 175kg
  • Lifting handles to side elevations and fully adjustable legs for maximum levelling & stability
  • Option to install Spirafix ground anchor x 1 internally for additional hold



  • Towers can be built to your own bespoke specification
  • 4 x HIKVISION / HANWHA / AJAX / DAHUA / BOSCH / AXIS Analytic Cameras (various) 4MP/6MP/8MP
  • 4 x 256gb/512gb (spec dependent) Micro SD Cards
  • 4G Field Grade Router & High Gain Antenna (Dual Sim)
  • 150Ah Heated Lithium Batteries
  • Victron Solar Components
  • Battery Charging System (12v)
  • New fully manageable solar web portal and app consisting of solar data, battery data, monitoring, GPS location, low battery/critical battery, system online/offline.

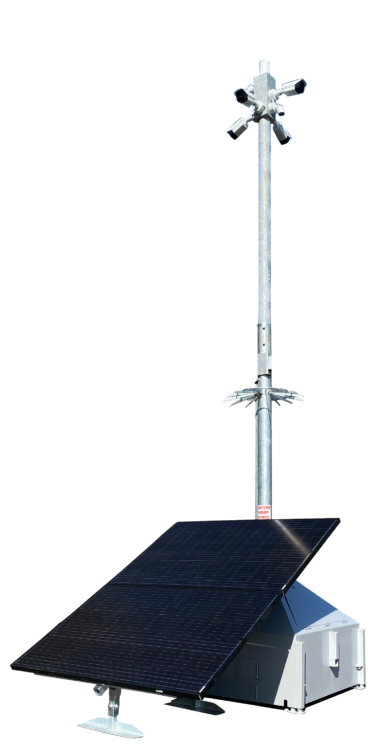

Maxsite Tower

Provides a visual deterrent with extra elevation to capture larger surface spaces, offering a reliable, robust, and versatile alternative, when mains or generator power are not available.

Maxsite Tower 6m Technical:

  • Solar, Mains or Hybrid
  • 6m tower height when deployed
  • Fully towable – mast height reduces to 3.25m for transportation
  • Dimensions of tower 1350mm square, add 2m square for solar panel frame and panels (standard double panel set up)
  • Tower Livery/Decals/Logo/Graphics/Chevrons (optional)
  • Ground anchor lugs for wire rope fastening to each corner of tower
  • Adjustable levelling legs – suitable for uneven ground/rough terrain
  • Batteries (Lithium 100ah) 2 x 13.5kg (approx. total 26kg)
  • Solar Bracket Frame & parts approx. 58kg (includes anti-climb)
  • Solar panels x 2 approx. 21kg each
  • Include an onboard 110v charger and battery backup system, and can also be plugged into mains/generator
  • Total weight approx. 520kg (depending on final specification)
  • Option to install Spirafix ground anchor for additional hold



  • Towers can be built to your bespoke specification
  • Static / PTZ / ANPR / Thermal
  • 4 x Hikvision/ Dahua/ Hanwha/ AJAX/ Bosch/ Axis Analytic Cameras (various) 4MP/6MP/8MP
  • 4 x 256gb/512gb (spec dependent) Micro SD Cards
  • External Audio horn
  • 150Ah Heated Lithium Batteries
  • 4G Field Grade Router & LMO Antenna (Dual Sim)
  • Battery Charging System (12v)
  • 450watt Solar Panels and bracket (quad panel & bracket arrangement upon request)
  • Victron Solar Components
  • New fully manageable solar web portal and app consisting of solar data, battery data, monitoring, GPS location, low battery/critical battery, system online/offline

How the systems work

Intrusion icon

Intrusion

Tresspassers unlawfully enter your site

Detection icon

Detection

Control room receives an alarm activation

Recognition icon

Recognition

Video footage analysed, audio announcements actioned

protection icon

Protection

Police and response called or notified to attend site

Features:

  • Mobile Towers manufactured in the UK, engineered and built to the highest quality, using the very latest technology
  • Units from 1440mm to 6m in height
  • 4MP/8MP enabling high-quality images Night and Day
  • 4G/5G Connectivity for remote access via Mobile Application
  • Hub or SD Card, with optional Wireless Links to NVR
  • Solar, Mains or Hybrid with battery back-up charging systems
  • Audio Loudspeaker, and/or Siren Alerts
  • Optional NSI Gold Monitoring & Alarm Response
  • Select RAL and add your company logo as required
  • Delivery, Installation, Commissioning, Training & Maintenance
